G9 Sheet (Melamine Glass Cloth Laminate Sheet)
| Specification Overview | |
| Name | G9 Sheet (Melamine Glass Cloth Laminate Sheet) |
| Base Material | Epoxy resin + Fiber glass |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.1mm – 300mm ( More than 300mm can be produced according to product requirements) |
| Dimensions | Regular size are 1020x1220mm,1020x2040mm,1220x2440mm; Special size, we can produce and cut according to customer’s requirements. |
| Density | 1.97g/cm3 – 2.2 g/cm3 |
| OEM | Accepted |
Product Introduction
This sheet is made of alkali-free glass cloth impregnated with melamine formaldehyde resin by drying and hot pressing. It has good arc resistance and certain dielectric properties and flame retardant properties.
It can be used as an arc resistance material in switches. Electrical equipment structural parts and electrical equipment isolation materials.

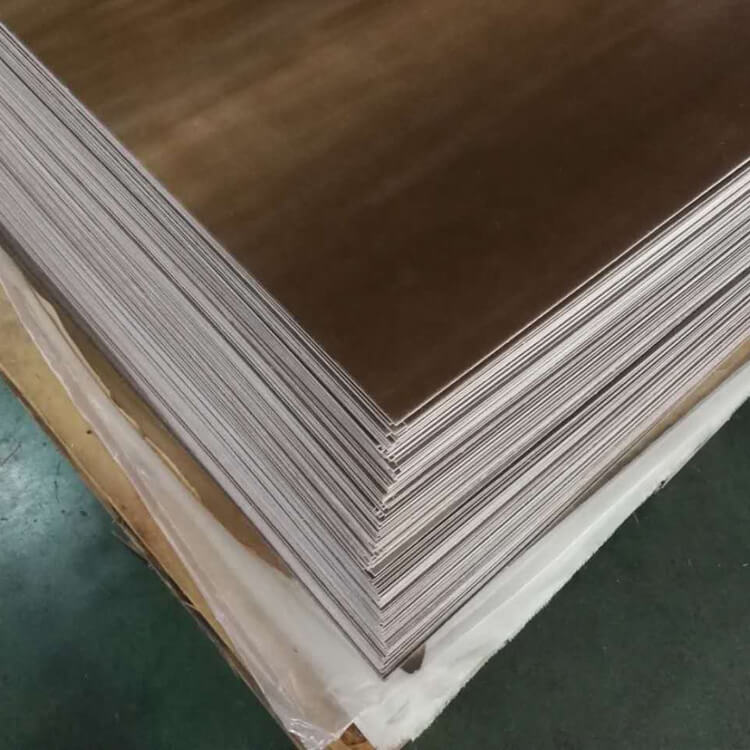

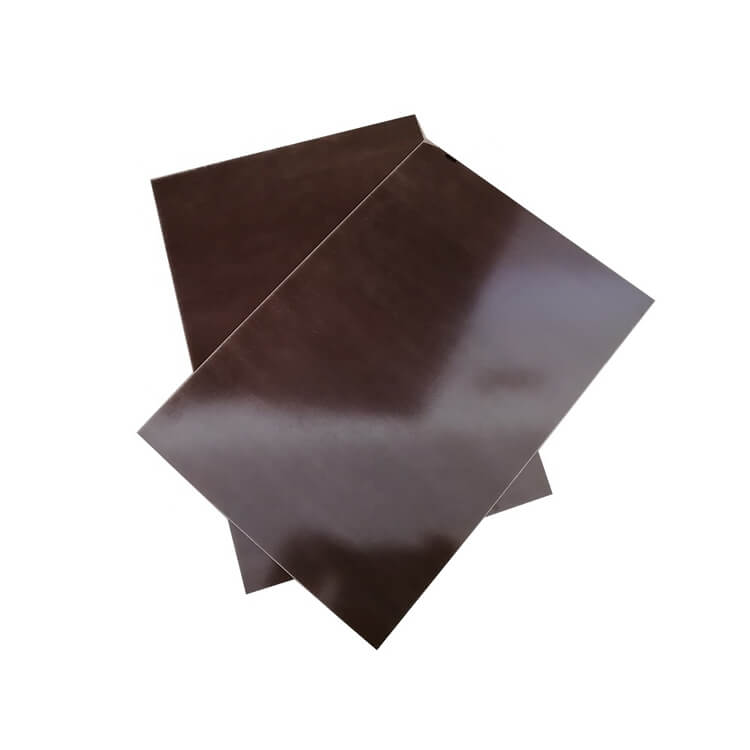

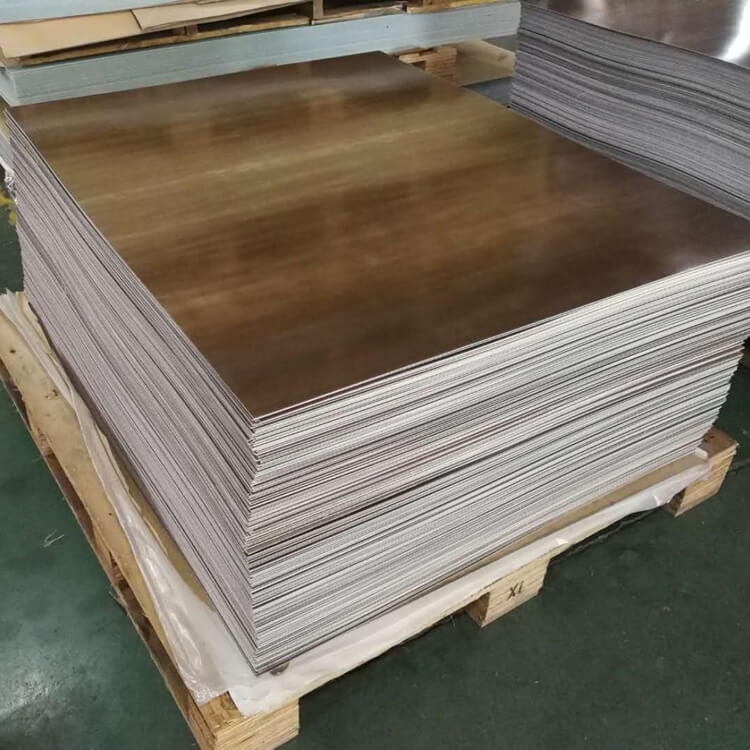

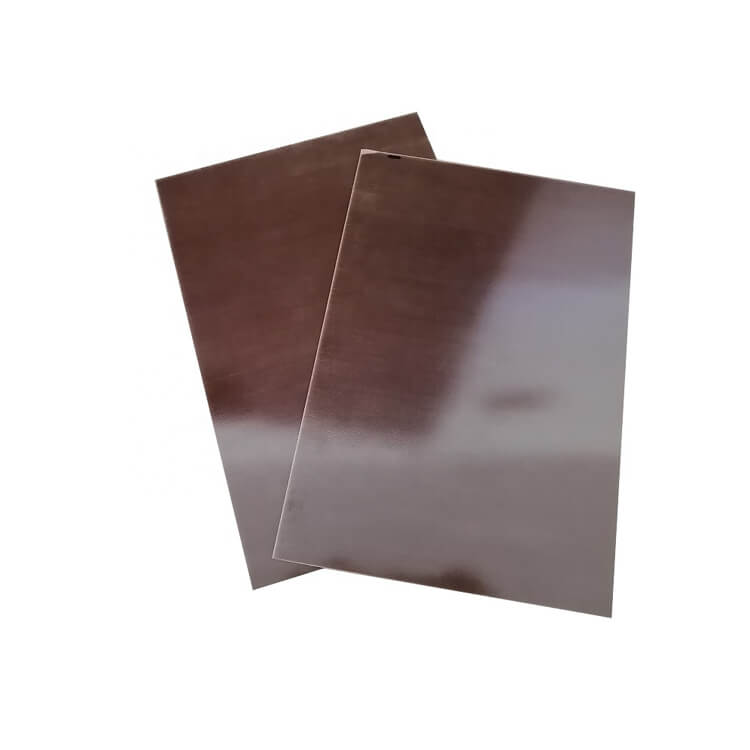

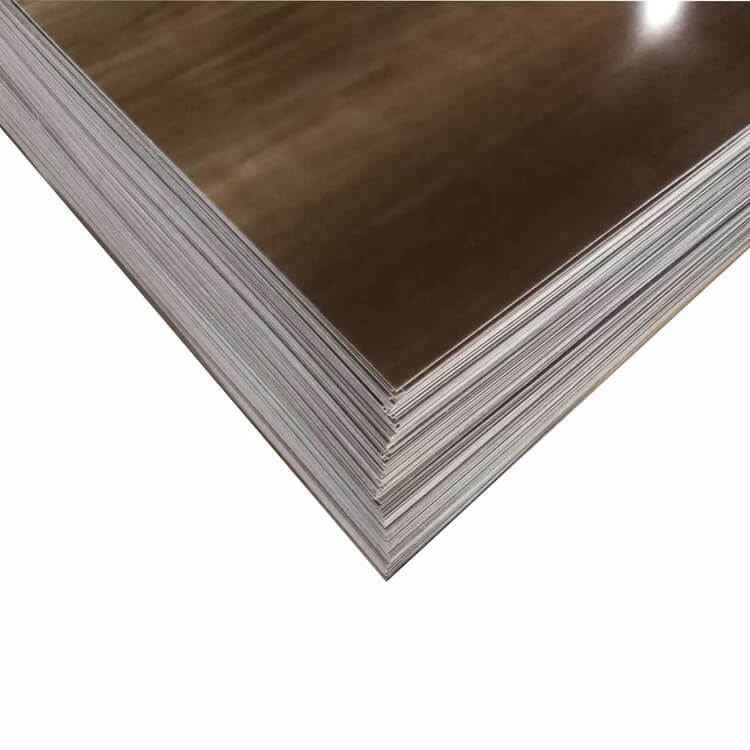

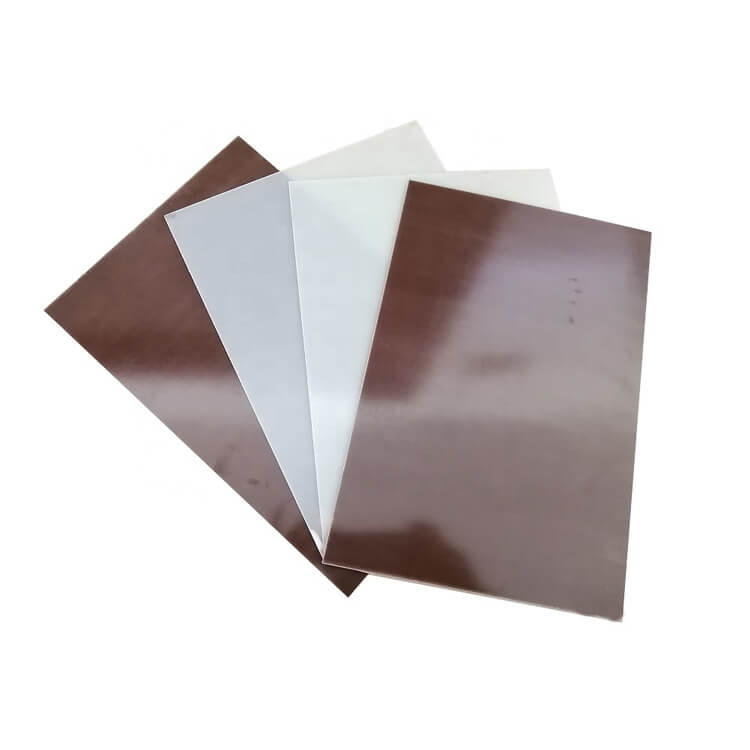

Product Photograph
Main Specifications
| Indicator Name | Unit | Indicator Value | |
| Density | g/ cm³ | 1 . 8 – 2 . 0 | |
| Water Absorption | % | ≤ 3.0 | |
| Vertical layer bending strength | MPa | ≥ 200 | |
| Parallel layer impact strength (simple beam method notch) | K J/ m² | ≥ 25 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/ mm | ≥ 7.0 |
| 2mm | ≥ 5.4 | ||
| 3mm | ≥ 5.0 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 15 | |
| Insulation resistance | Normality | Ω | ≥ 1 . 0 × 101 0 |
| After immersed in water for 24 h | ≥ 1 . 0 × 108 | ||
| Flammability (UL-94) | Level | – | |
FAQ
Q1: Sample?
Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: Payment term?
Small order ,we accept by T/T,western union, Paypal, .Bulk quantity order ,70% T/T in advance, 30% balance before shipment. Other terms negotiable.
Q3: Confidentiality of drawings
Yes, we can sign the NDA before you send the drawing.
Q4 :Available for customized design drawings?
Yes, CAD, STEP, IGS, PDF, Solidwork, etc. All is ok.
Q5: Delivery time
It depends on order quantity.Generally speaking, the delivery time will be within 7 to 15 days.
Q6: Package
We will use professional craft paper to package on plywood pallet.if you have special package requirements, we will pack as your need.
