G10 Epoxy Fiberglass Laminate Sheet
| Specification Overview | |
| Name | G10 Epoxy Fiberglass Laminate Sheet |
| Base Material | Epoxy resin + Fiber glass |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.1mm – 300mm ( More than 300mm can be produced according to product requirements) |
| Dimensions | Regular size are 1020x1220mm,1020x2040mm,1220x2440mm; Special size, we can produce and cut according to customer’s requirements. |
| Density | 1.97g/cm3 – 2.2 g/cm3 |
| OEM | Accepted |
Product Introduction
G10 Epoxy Fiberglass Laminate Sheet is a kind of laminated sheet formed through heat pressing after the electric industry fiberglass cloth dips into epoxy resin.Suitable as the mechanical, electric and electronic insulation structural components which are used under homoeothermy and middle temperatures with a certain mechanical performance and electric performance.
This product is made of glass fiber cloth for electronics impregnated with brominated epoxy resin and heated and pressurized. It has high mechanical properties, dielectric properties and flame retardant properties, good heat resistance and moisture resistance, and good machinability;It fully meets the requirements of EU RHOS standards and SGS standards, and is widely exported to Southeast Asia, the EU, India and other regions.
It is widely used in products which requiring high-performance electronic insulation, such as FPC reinforcement boards, PCB drilling pads, glass fiber mesons, potentiometer carbon film printed glass fiber boards, precision star gears (wafer grinding), precision test plates, Electrical (electrical) equipment insulation stay spacers, insulation backing plates, transformer insulation plates, motor insulation parts, grinding gears, electronic switch insulation plates, etc.

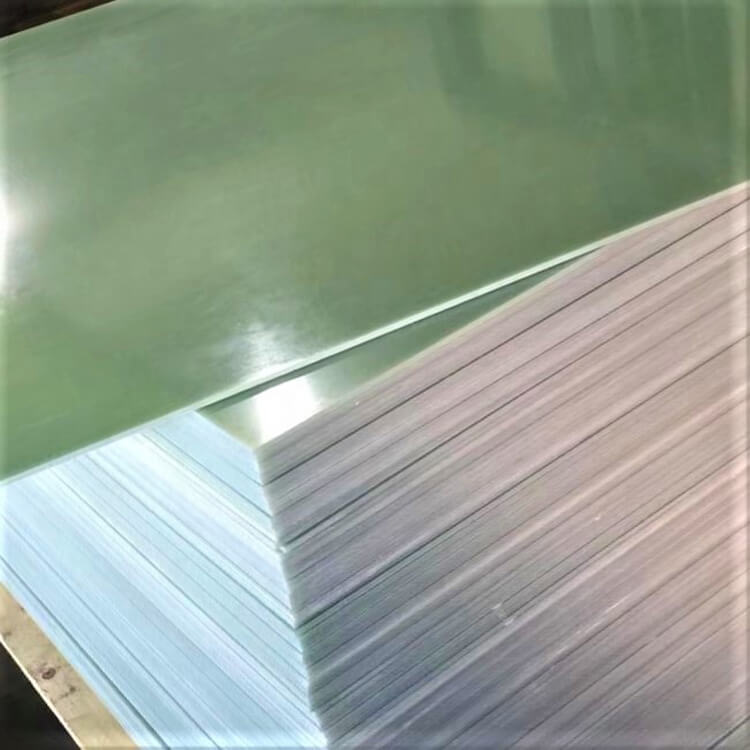

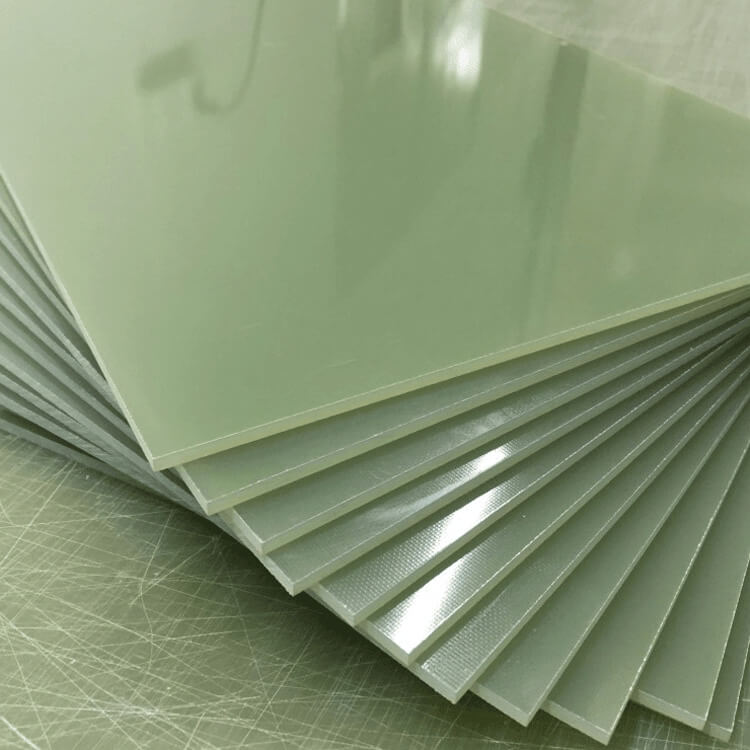

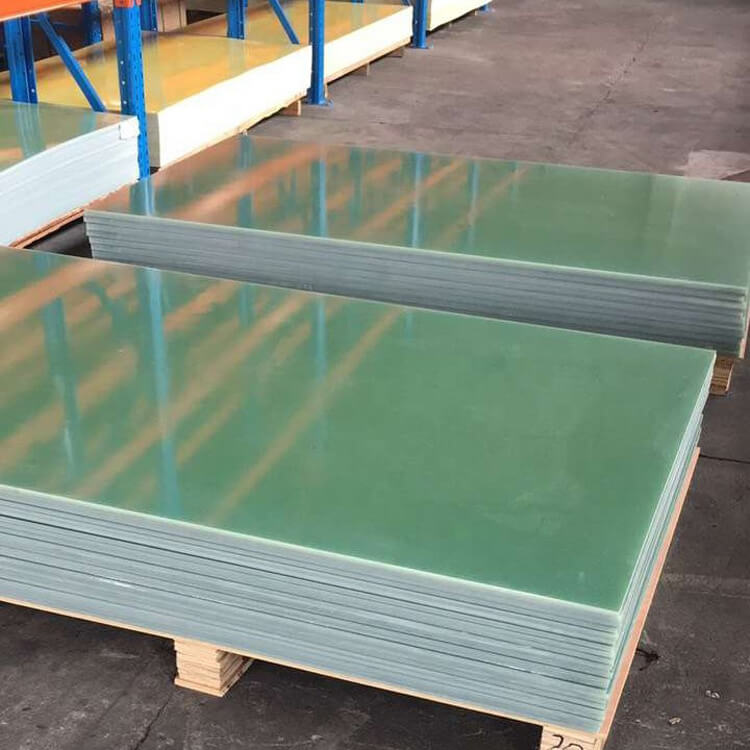

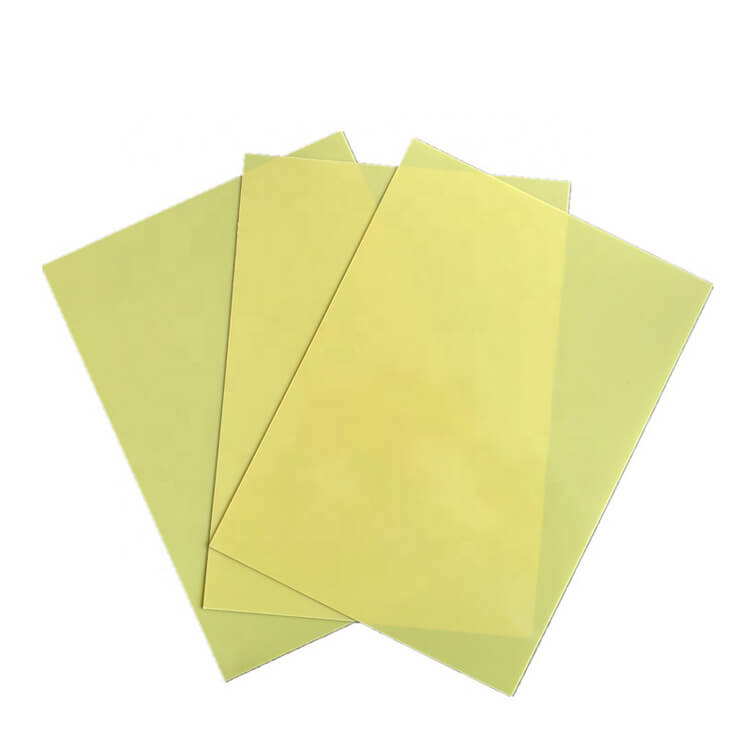

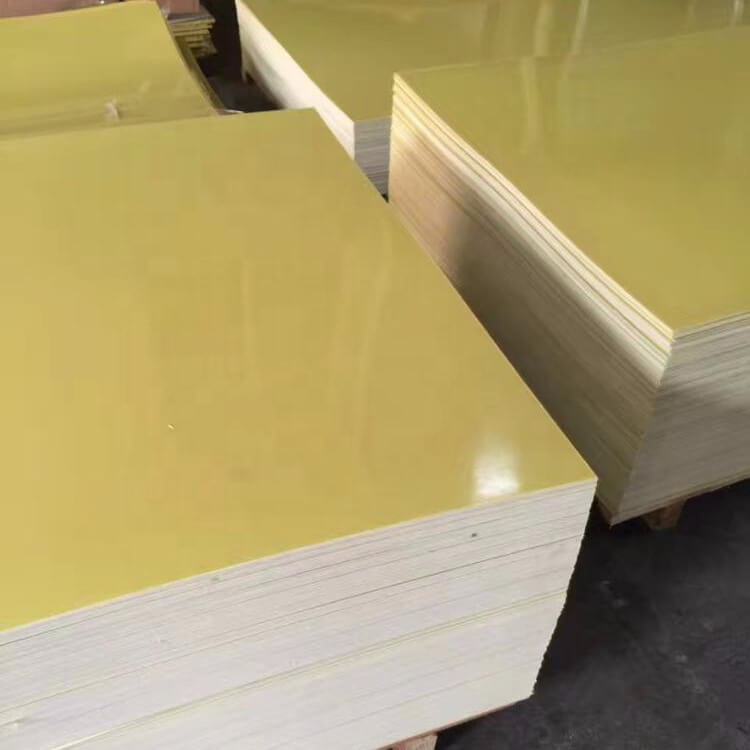

Product Photograph
Main Specifications
| Indicator Name | Unit | Indicator Value | |
| Density | g/ cm³ | 1 . 8 – 2 . 0 | |
| Water Absorption | % | ≤ 0 . 5 | |
| Vertical layer bending strength | MPa | ≥ 340 | |
| Vertical layer compression strength | MPa | ≥ 350 | |
| Parallel layer impact strength (simple beam method notch) | K J/ m² | ≥ 37 | |
| Parallel layer shear strength | MPa | ≥ 34 | |
| Tensile Strength | MPa | ≥ 300 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/ mm | ≥ 14 . 2 |
| 2mm | ≥ 11 . 8 | ||
| 3mm | ≥ 10 . 2 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 40 | |
| Dielectric loss factor (50 Hz) | – | ≤ 0 . 04 | |
| Insulation resistance | Normality | Ω | ≥ 5 . 0 × 101 2 |
| After immersed in water for 24 h | ≥ 5 . 0 × 101 0 | ||
| Flammability (UL-94) | Level | – | |
FAQ
Q1: Sample?
Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: Payment term?
Small order ,we accept by T/T,western union, Paypal, .Bulk quantity order ,70% T/T in advance, 30% balance before shipment. Other terms negotiable.
Q3: Confidentiality of drawings
Yes, we can sign the NDA before you send the drawing.
Q4 :Available for customized design drawings?
Yes, CAD, STEP, IGS, PDF, Solidwork, etc. All is ok.
Q5: Delivery time
It depends on order quantity.Generally speaking, the delivery time will be within 7 to 15 days.
Q6: Package
We will use professional craft paper to package on plywood pallet.if you have special package requirements, we will pack as your need.
