FR2 Epoxy Fiberglass Laminate Sheet
| Specification Overview | |
| Name | FR2 Epoxy Fiberglass Laminate Sheet |
| Base Material | Epoxy resin + Fiber glass |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.1mm – 300mm ( More than 300mm can be produced according to product requirements) |
| Dimensions | Regular size are 1020x1220mm,1020x2040mm,1220x2440mm; Special size, we can produce and cut according to customer’s requirements. |
| Density | 1.97g/cm3 – 2.2 g/cm3 |
| OEM | Accepted |
Product Introduction
This sheet is made of glass fiber cloth impregnated with brominated epoxy resin and heated and pressurized. It has high mechanical properties, dielectric properties and flame retardant properties, good heat resistance and moisture resistance, and good machinability;
It is widely used as structural parts in motors and electrical equipment, including various switches, electrical insulation, FPC reinforcement boards, carbon film printed circuit boards, computer drilling pads, mold fixtures, etc. (PCB testing Frame); and can be used in humid environments and transformer oil

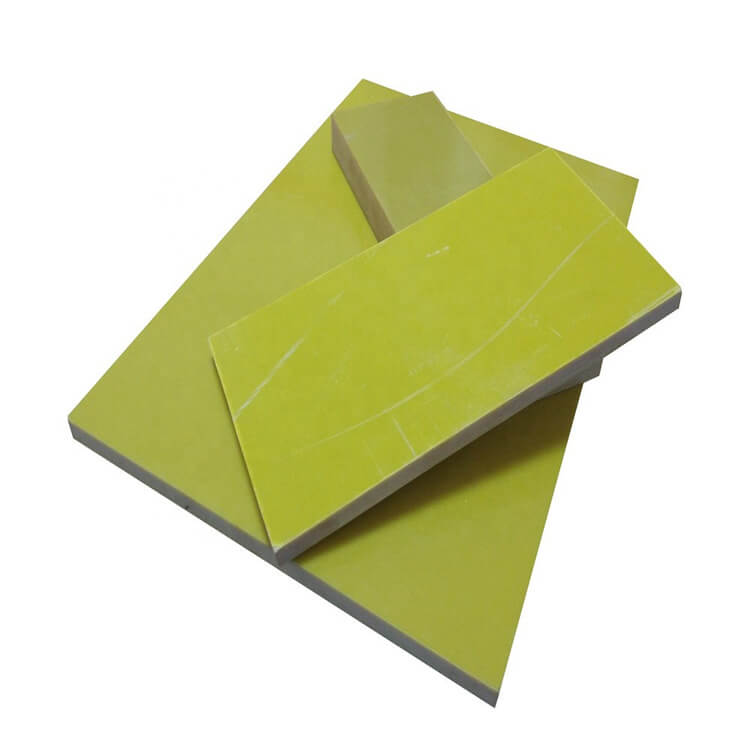

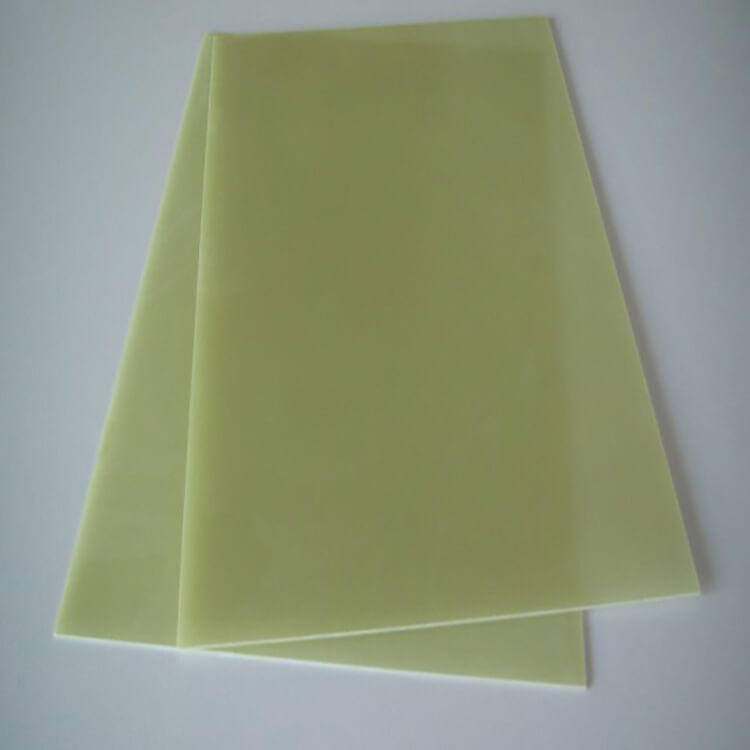

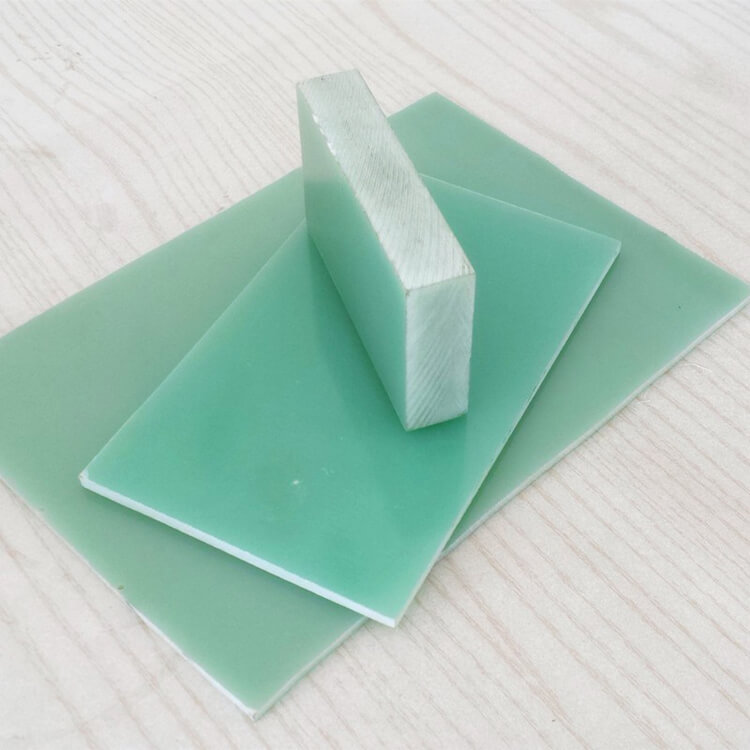

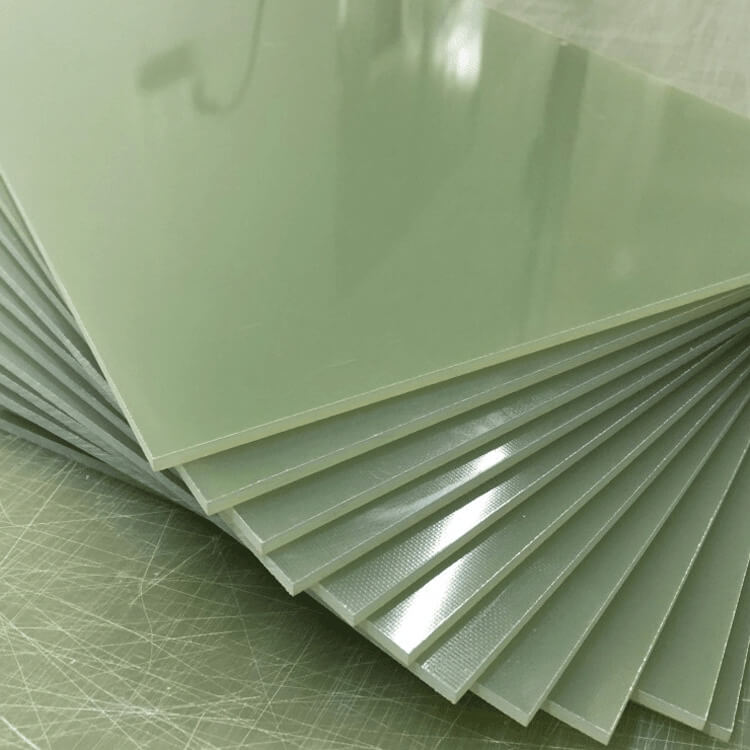

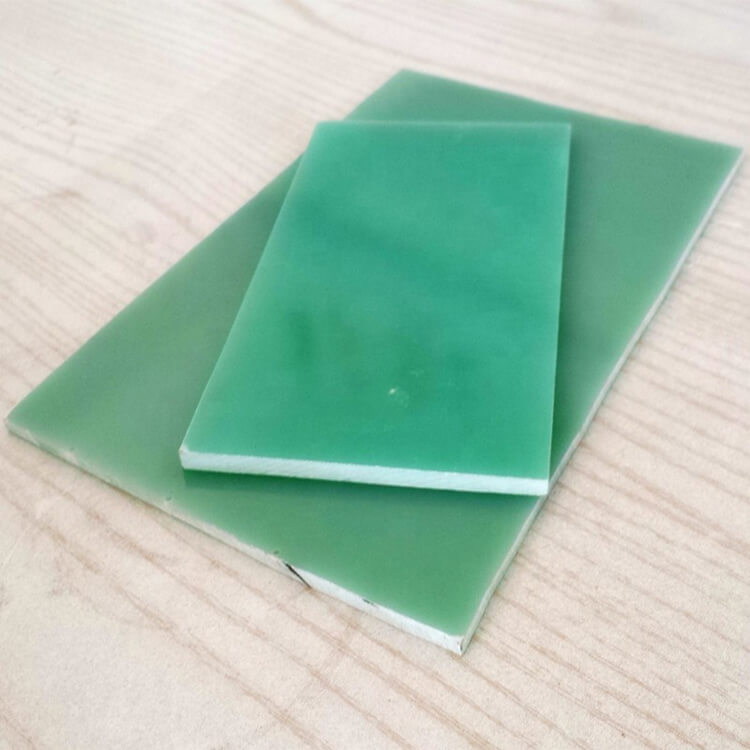

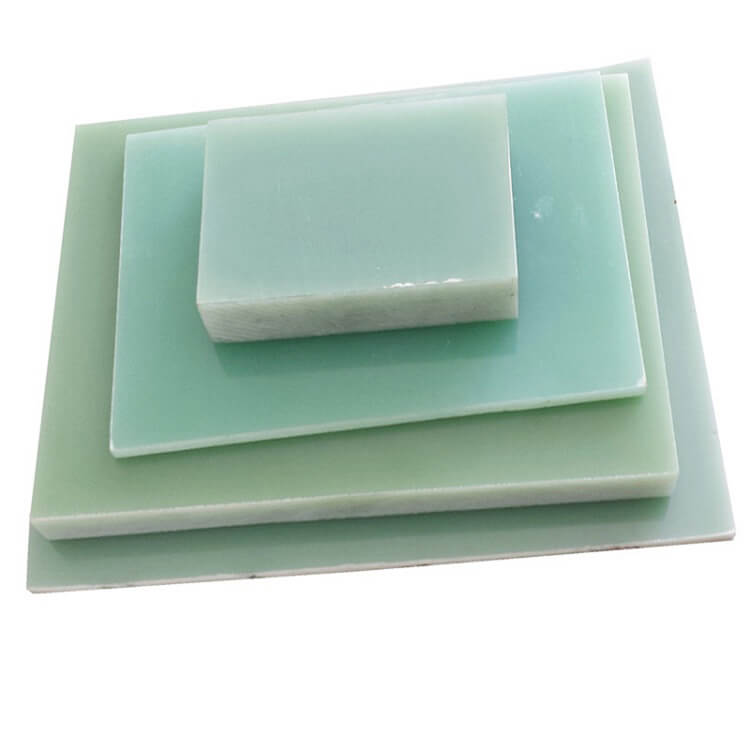

Product Photograph
Main Specifications
| Indicator Name | Unit | Indicator Value | |
| Density | g/ cm³ | 1 . 8 – 2 . 0 | |
| Water Absorption | % | ≤ 0 . 5 | |
| Vertical layer bending strength | MPa | ≥ 340 | |
| Vertical layer compression strength | MPa | ≥ 350 | |
| Parallel layer impact strength (simple beam method notch) | K J/ m² | ≥ 37 | |
| Parallel layer shear strength | MPa | ≥ 34 | |
| Tensile Strength | MPa | ≥ 300 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/ mm | ≥ 14 . 2 |
| 2mm | ≥ 11 . 8 | ||
| 3mm | ≥ 10 . 2 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV | ≥ 40 | |
| Dielectric loss factor (50 Hz) | – | ≤ 0 . 04 | |
| Insulation resistance | Normality | Ω | ≥ 5 . 0 × 101 2 |
| After immersed in water for 24 h | ≥ 5 . 0 × 101 0 | ||
| Flammability (UL-94) | Level | V- 0 | |
FAQ
Q1: Sample?
Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: Payment term?
Small order ,we accept by T/T,western union, Paypal, .Bulk quantity order ,70% T/T in advance, 30% balance before shipment. Other terms negotiable.
Q3: Confidentiality of drawings
Yes, we can sign the NDA before you send the drawing.
Q4 :Available for customized design drawings?
Yes, CAD, STEP, IGS, PDF, Solidwork, etc. All is ok.
Q5: Delivery time
It depends on order quantity.Generally speaking, the delivery time will be within 7 to 15 days.
Q6: Package
We will use professional craft paper to package on plywood pallet.if you have special package requirements, we will pack as your need.
