3240 Epoxy Phenolic Glass Cloth Laminate Sheet
| Specification Overview | |
| Name | 3240 Epoxy Phenolic Glass Cloth Laminate Sheet |
| Base Material | Epoxy resin + Fiber glass |
| Color | Green\yellow\red\black\white,etc (Color can be customized according to customer requirements) |
| Thickness | 0.1mm – 300mm ( More than 300mm can be produced according to product requirements) |
| Dimensions | Regular size are 1020x1220mm,1020x2040mm,1220x2440mm; Special size, we can produce and cut according to customer’s requirements. |
| Density | 1.97g/cm3 – 2.2 g/cm3 |
| OEM | Accepted |
Product Introduction
3240 Epoxy Phenolic Glass Cloth Laminate Sheet
This laminated sheet is made of electrician alkali-free glass cloth impregnated with epoxy phenolic resin by hot pressing. It has high mechanical strength and dielectric properties, excellent mechanical properties, and high mechanical strength at medium temperature. Good electrical performance stability under wet conditions; It is widely used in the fields of machinery, electricity, electronics, electrical appliances and so on. It is also used in the processing of insulating parts, processed into various insulating parts and equipment insulating structural parts, and can be used in humid environmental conditions and transformer oil.
Applications: Inverters, motors, motors, electronic appliances, aluminum batteries, new energy, electrical equipment isolation and support, distribution boxes, fixture boards, mold splints, high and low voltage wiring boxes, packaging machines, combs, mechanical molds , Forming machine, drilling machine, table polishing pad, insulating frame, insulating coil frame, transformer frame, etc.

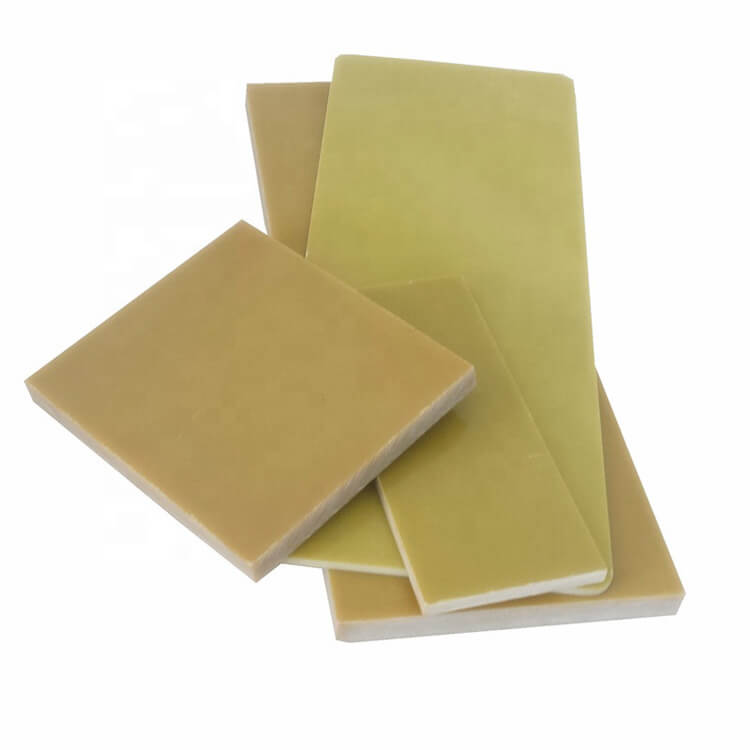

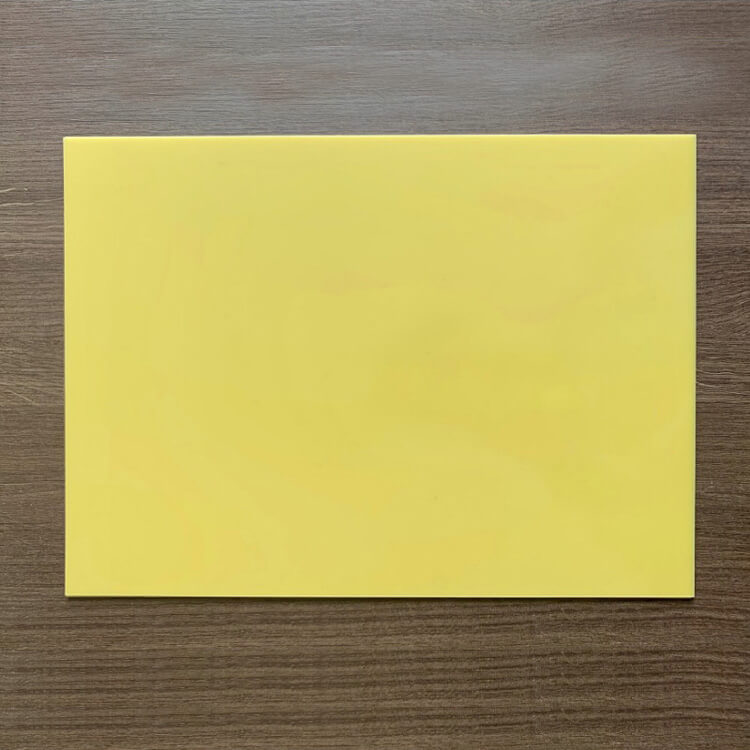

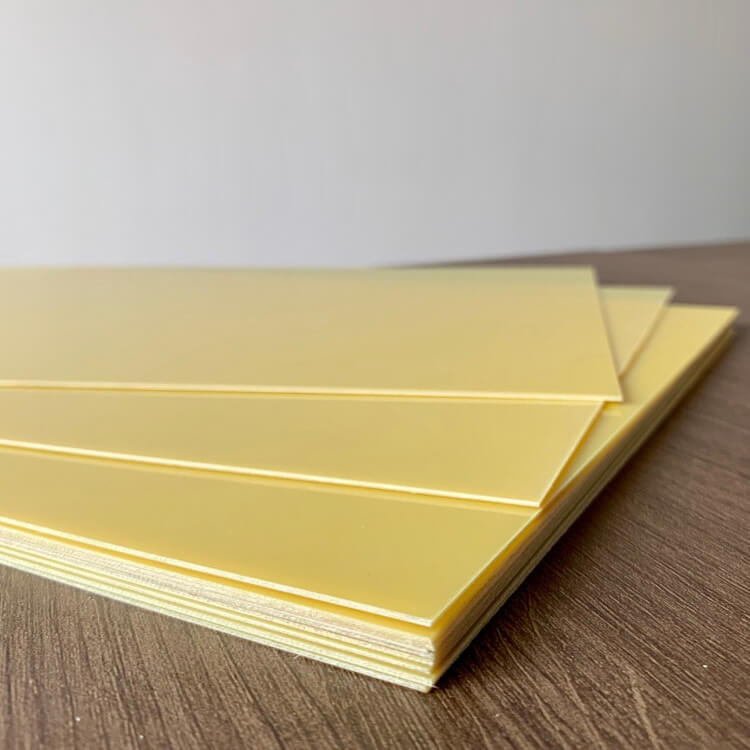

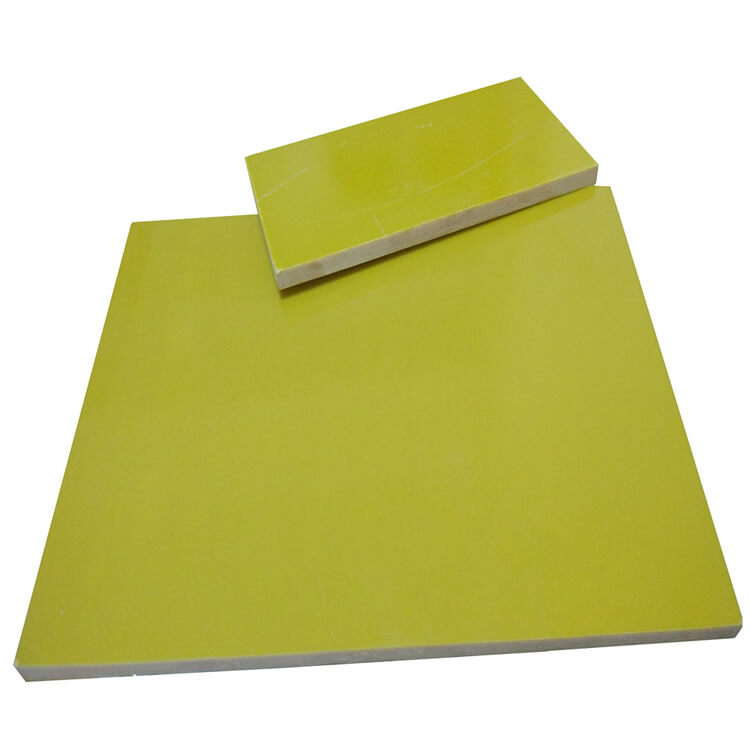

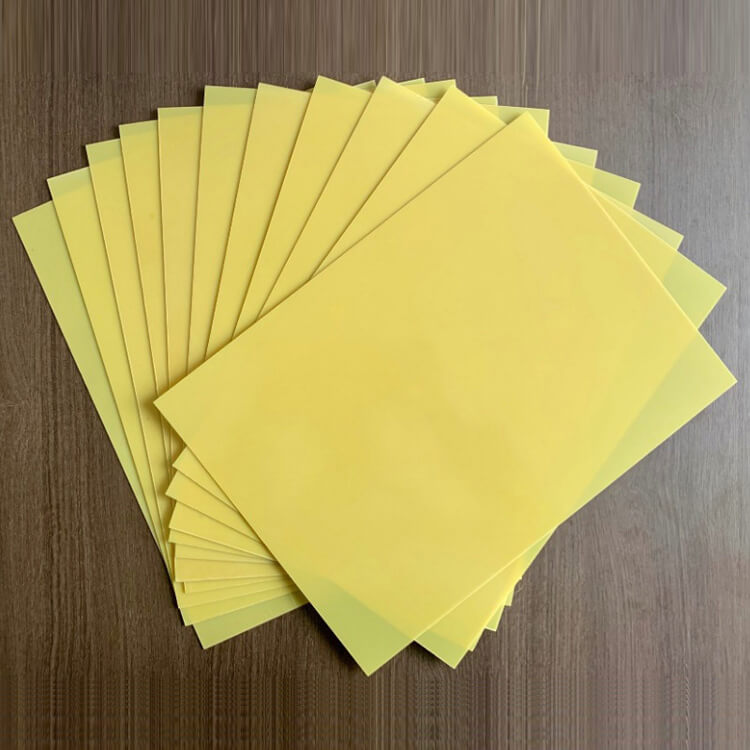

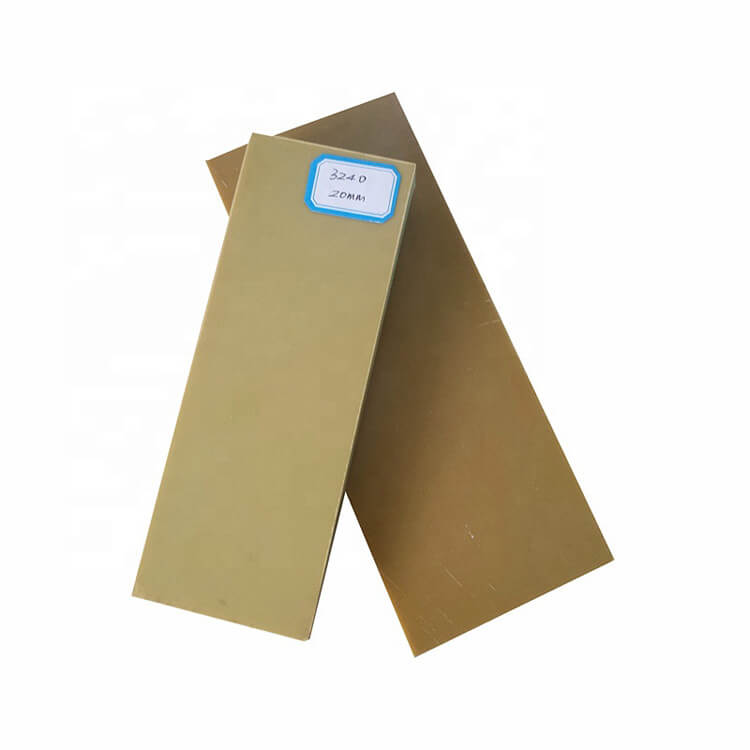

Product Photograph
Main Specifications
| Indicator Name | Unit | Indicator Value | |
| Density | g/ cm³ | 1 . 8 – 2 . 0 | |
| Water Absorption | % | ≤ 0 . 5 | |
| Vertical layer bending strength | MPa | ≥ 340 | |
| Vertical layer compression strength | MPa | ≥ 350 | |
| Parallel layer impact strength (simple beam method notch) | K J/ m² | ≥ 33 | |
| Parallel layer direction impact strength (cantilever beam method) | K J/ m² | ≥ 340 | |
| Parallel layer shear strength | MPa | ≥ 30 | |
| Tensile Strength | MPa | ≥ 200 | |
| Vertical layer direction electric strength (90 ℃± 2 ℃ in oil) | 1mm | KV/ mm | ≥ 14 . 2 |
| 2mm | ≥ 11 . 8 | ||
| 3mm | ≥ 10 . 2 | ||
| Parallel layer direction breakdown voltage (90 ℃± 2 ℃ in oil) | KV/mm | ≥ 350 | |
| Dielectric loss factor (50 Hz) | / | ≤ 0 . 04 | |
| Insulation resistance | Normality | Ω | ≥ 5 . 0 × 101 0 |
| After immersed in water for 24 h | ≥ 5 . 0 × 101 0 | ||
