3233 Glass Cloth Laminated Sheet
| Specification Overview | |
| Name | 3233 glass cloth laminated sheet |
| Type | Insulation Sheet |
| Material | FiberGlass |
| Application | High Voltage |
| Size | 1020*1220mm/1220*2440mm/customized |
| Thickness | 0.2-100mm |
| Density | 1.8-2.0 G/cm3 |
| Fire resistance | |
| Rated Voltage | UL94 V-0 |
| Color | Black |
| Tensile Strength | 240Mpa |
Product Introduction
This product is a laminated sheet which is made of eletrical alkali free glass cloth impregnated with melamine resine by hot pressing.
Features:
1.Good arc resistance properties;
2.Good dielectric properties ;
3.High Mechanical strength
4.Flame resistance:UL 94 V-0

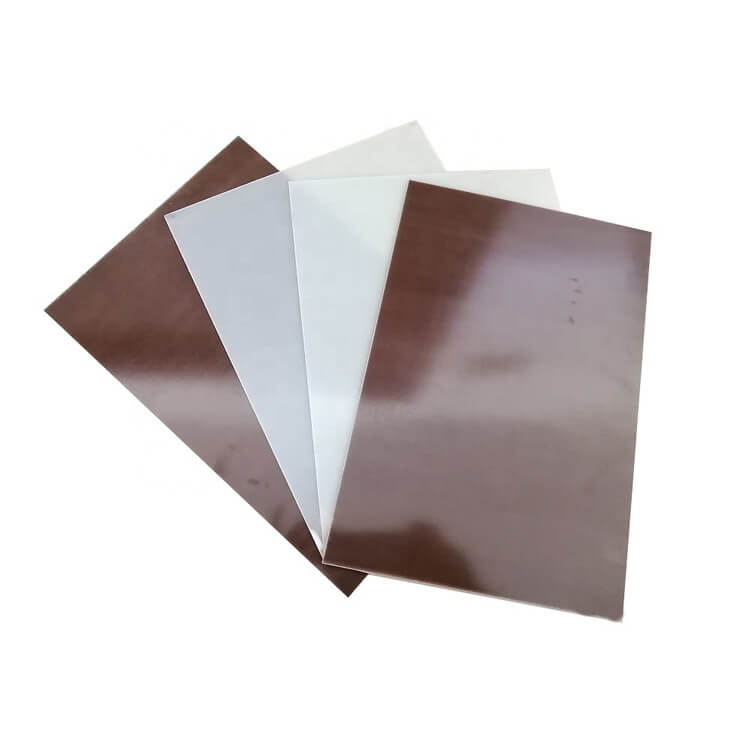

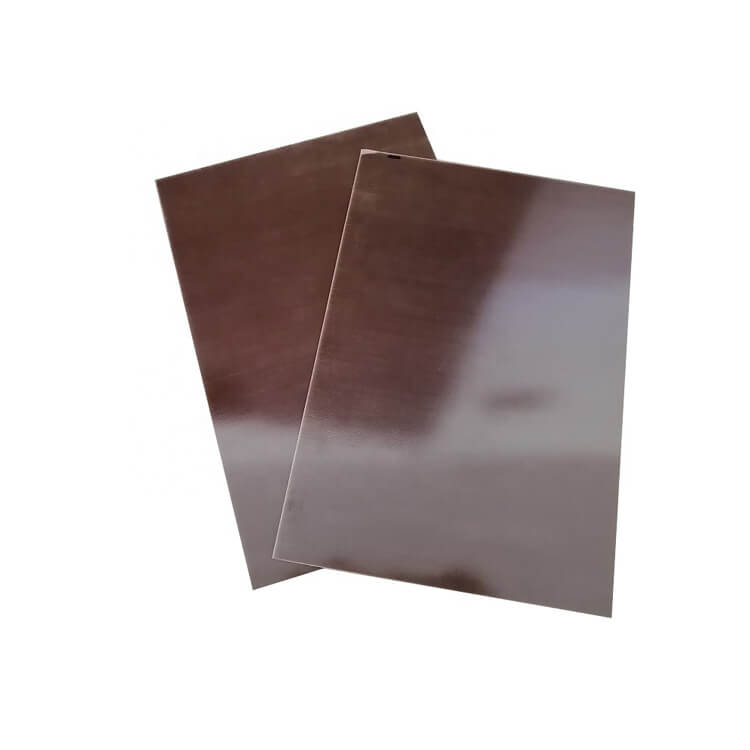

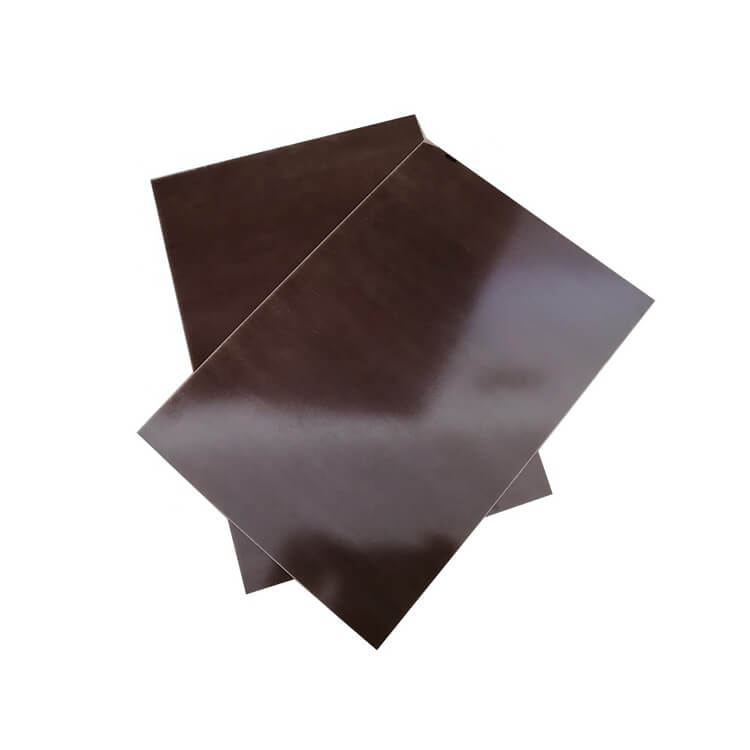

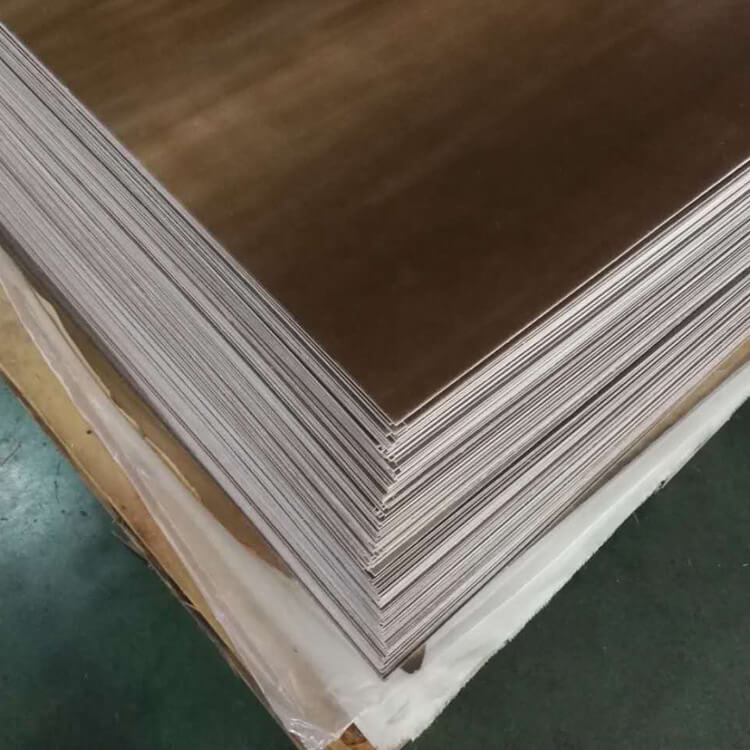

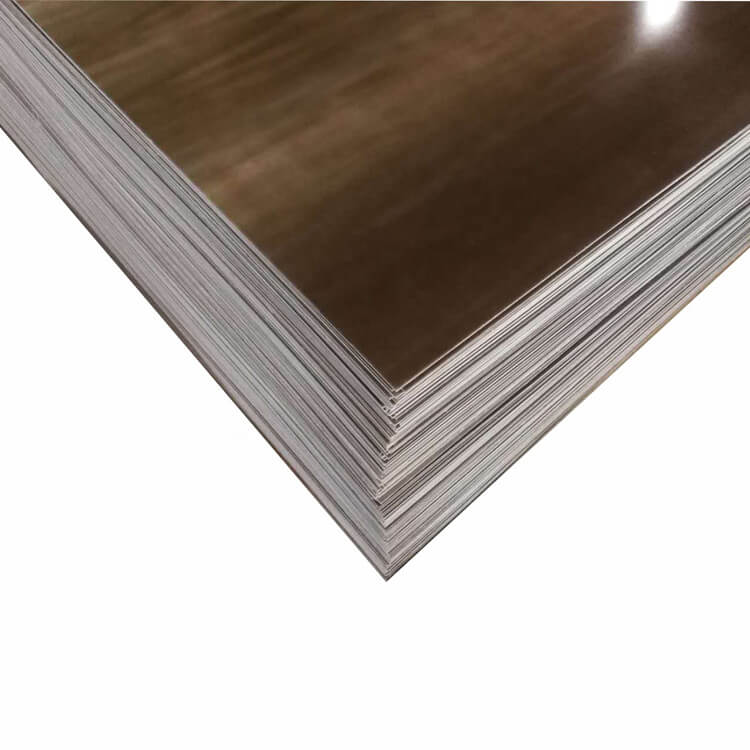

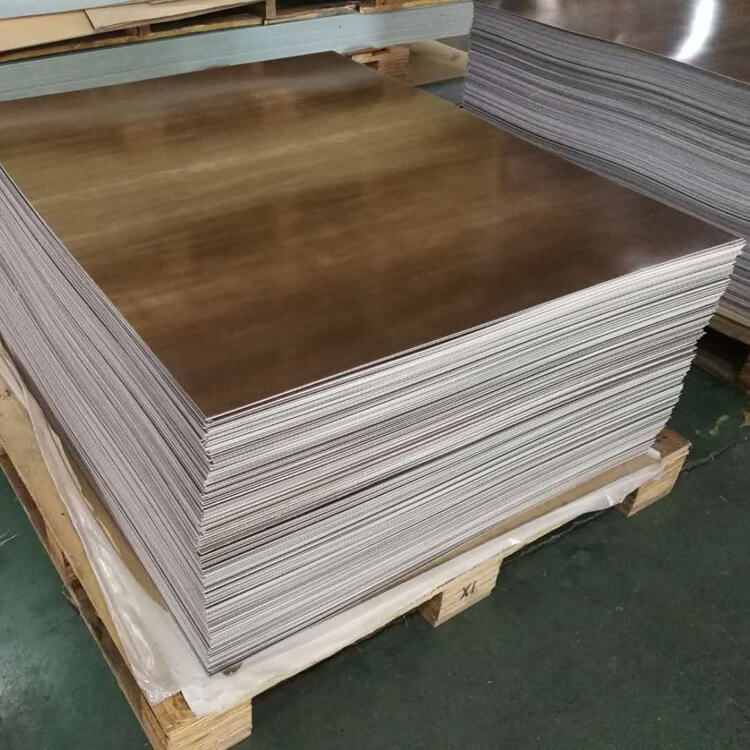

Product Photograph






Main Specifications
| Indicator Name | Unit | Indicator Value | |
| Density | g/ cm³ | 1 . 8 – 2 . 0 | |
| Water Absorption | % | ≤ 2 | |
| Vertical layer bending strength | MPa | ≥ 240 | |
| Parallel impact strength(Charpy type) | KJ/m2 | ≥ 30 | |
| Vertical electric strength (in oil of 90℃±2℃) | 1mm | MV/m | ≥7.0 |
| 2mm | ≥5.4 | ||
| 3mm | ≥5.0 | ||
| Parallel breakdown voltage (in oil of 90℃ ± 2℃) | KV | ≥ 15 | |
| Relative dielectric constant (50Hz) | – | ≤7.5 | |
| Dielectric dissipation factor(50Hz) | – | ≤0.02 | |
| Insulation resistance after soaking (After soaking for 24 hours) | Ω | ≥1.0X107 | |
| Fire resistance (UL94) | – | FV0 | |
FAQ
Q1: Sample?
Small size of sample are free, you only need pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier to us. Customized size of sample should be charged.
Q2: Payment term?
Small order ,we accept by T/T,western union, Paypal, .Bulk quantity order ,70% T/T in advance, 30% balance before shipment. Other terms negotiable.
Q3: Confidentiality of drawings
Yes, we can sign the NDA before you send the drawing.
Q4 :Available for customized design drawings?
Yes, CAD, STEP, IGS, PDF, Solidwork, etc. All is ok.
Q5: Delivery time
It depends on order quantity.Generally speaking, the delivery time will be within 7 to 15 days.
Q6: Package
We will use professional craft paper to package on plywood pallet.if you have special package requirements, we will pack as your need.
